BD Diesel 14-20 Cummins ISX15 w/ Engine Intake Throttle Equipped E-PAS – SBX Performance Trending

Description

Manufacturer Part # : 1036770

Market Description

• Descending grades with trailers can be hazardous and tricky situations, resulting in over heated service and trailer brakes, that leads to brake fade, excessive wear, and costly unwarranted repairs. BD Engine brake has been the industries time proven VARIABLE REGULATING BACK-PRESSURE EXHAUST BRAKE.Controlled by a lighted On/Off toggle switch or optional stick-mounted rocker switch for manual transmissions, the BD brake communicates with the engines electronic idle verification board for quick engagement. Where it mounts: Most vehicle applications will either have BDs turbo-mount design which bolts in place of the factory elbow between the turbo and the exhaust system or the inline design mounts in the exhaust system between the engine and muffler/DPF/cat. The BD Brakes rugged cast-iron housing incorporates BDs exclusive AlumiBronze bushing and positive sealing piston ring, no blind holes for carbon and rust to form, and miles of leak free retarding. Brake valve is actuated by an air cylinder (newer models) or a powerful, three- in. vacuum cylinder (earlier models). The durable air compressor included in later model kits can even be used for other applications, such as air horns, air bags even air-ride fifth wheel hitches –it is that tough. Automatic-equipped trucks prior to 2006 require BDs programmable AutoLoc and PressureLoc kits to electronically control torque converter clutch engagement. This addition effectively reduces slippage, resulting in peak retarding performance as well as lower transmission temperatures. All BD Brake kits come complete with the brake, air compressor (where applicable), mounting hardware, port to monitor the brakes retarding performance, complete instructions and most models come with EGT port.
• Like a fire extinguisher in your house, or an earthquake kit, it’s always better to be prepared. Although rare, Diesel Engine Runaway is caused when external hydrocarbons are drawn into the engine and can cause over speeding and catastrophic engine failure. Life, limb and your vehicle are put in jeopardy. BD Diesel Performance has you covered should the worst happen with our Electronic Positive Air Shutdown (E-PAS) units by cutting the intake air supply to the cylinders and safely shutting down the engine. The E-PAS controls the electronic throttle body in the intake manifold found on most late model diesel engines by closing it to shut off the air supply in emergency situations. The E-PAS can be easily installed in less than 2 hours with factory plug-in connectors and pre-made wiring harnesses. Automatically resets itself after shutdown and can be easily removed for truck lease returns.

Product Description – Extended

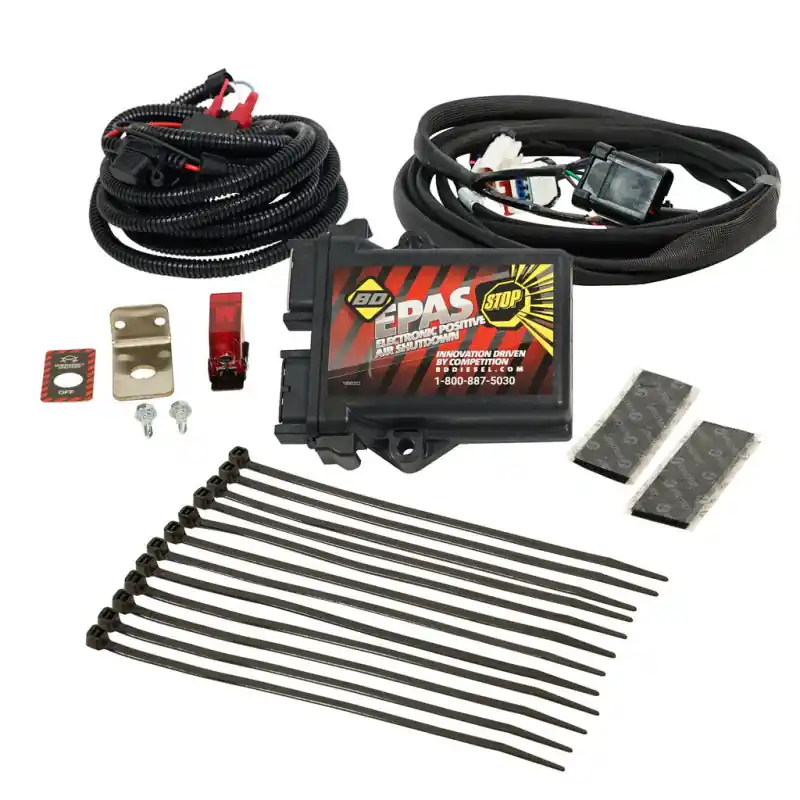

E-PAS Positive Air Emergency Engine Shutdown; Incl. Electronic Module/Switch Harness/Switch Decal/Switch Guard Decal/Switch Guard/Velcro Strips/Cable Ties/Window Decal;

Product Description – Short

• BD Diesel 14-20 Cummins ISX15 w/ Engine Intake Throttle Equipped E-PAS Positive Air Shut-off
• ENGINE SHUTDOWN KIT

Features and Benefits

• Automatically resets after shut down (Might need to clear engine codes manually)
• Complies with guidelines such as Clause 5.1 (i), CSA B622-14 and CSA-B622
• Over Speed Shut Down Control Utilizing Built In Intake Air Valve
• Includes window decal to show that the EPAS system is installed
• Save 3 Hours Installation Time Labor Over Mechanical Systems
• Uses factory connectors, sensors and intake valve
• Safely Shuts Your Engine Down If Over Speeding
• Factory Plug In Connections And Wiring Harness
• The kit requires only basic tools to install
• Safely turns off the engine if over speeding
• Can Be Installed In Less Than 1.5 Hours
• Only The Switch Needs A Tool To Install
• Easily Removed For Truck Lease Returns
• Automatically Resets After Shut Down
• Engine-specific purpose-built kit
• 24 Months or 24000 Miles Warranty
• Does Not Set ECM Trouble Codes

Product Description – Long

• BD E-PAS Positive Air Shut-Off Heavy Duty ISX/X15 2014-2023
• E-PAS Positive Air Emergency Engine Shutdown

Product Description – Invoice

ENGINE SHUTDOWN KIT ISX/X15

AAIA Part Type Description

Air Intake Shutdown
