BD Diesel Built-It Trans Kit 5/07-16 Dodge 68RFE Stage 4 Master Rebuil – SBX Performance Affordable

Description

Manufacturer Part # : 1062025

Market Description

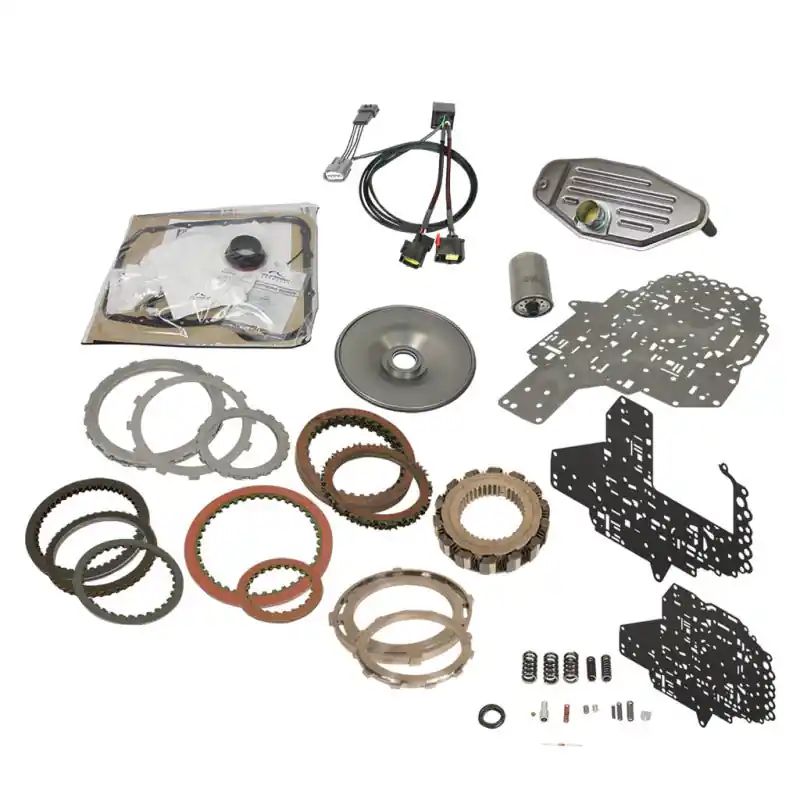

• Same parts used in our own performance transmissions; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; All kits include the basic rebuild parts and gaskets; Stiffer Billet Intermediate Reaction Plate; Stiffer Billet OverDrive/Rev Reaction Plate; 2C Clutch Friction Raybestos; 2C Clutch Steel; 4C Clutch Friction Raybestos; 4C Clutch Steel; Filter – Spin On; O/D Gear Friction Raybestos; O/D Gear Steel; One-Way Clutch HD Upgrade; BD Pressure Plate – Lower Machined; BD Pressure Plate – Rev Machined; BD ProTect68 Kit; Pump Cover; Valve Body Accumulator Plate; Reverse Clutch Friction Raybestos; Reverse Friction; Reverse Steel; Filter; Low Reverse Steel; Overhaul Kit
• Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit – which is pretty well everything we put in our own transmission rebuilds.

Features and Benefits

• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
• Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
• Seal – Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
• Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
• Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
• Over Drive clutches 17% increase and Under Drive clutches 20% increase
• Up To 80 Percent Higher Clutch Apply Pressures Over Stock Unit
• Seal Kit – 2-4C, Input Drum, Solenoid Pack, Internal, External
• Heavy duty accumulator plate to prevent accumulator blowout
• Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
• Same Parts Used In Our Own Performance Transmissions
• Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
• Gasket Kit – Oil Cooler, Oil Pan, Solenoid Pack
• Qty 15: OD Clutch Friction, OD Clutch Steel
• 12 Month Or 12000 Mile Warranty
• Billet 4C Spring Retaining Ring
• Upgraded One Way Clutch/Sprag
• Qty 2: Check Balls 1/4in
• Filter – Pan, Spin On
• O-Ring – pump Cover
• Pump Cover

Product Description – Extended

Stage 4 Master Built-It Transmission Kit; Incl. Basic Rebuilt Parts/ProTect 68/Gaskets/Hardware;

Product Description – Short

• BD Diesel Built-It Trans Kit 5/07-16 Dodge 68RFE Stage 4 Master Rebuild Kit c/w ProTect 68
• BUILD-IT KIT STAGE 4
• A/TRebuildKt

Product Description – Long

• BD Build-It Dodge 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68
• Stage 4 Master Built-It Transmission Kit

Product Description – Invoice

BUILD-IT KIT STAGE 4 DODGE 2007-18 68RFE

AAIA Part Type Description

Automatic Transmission Overhaul Kit
