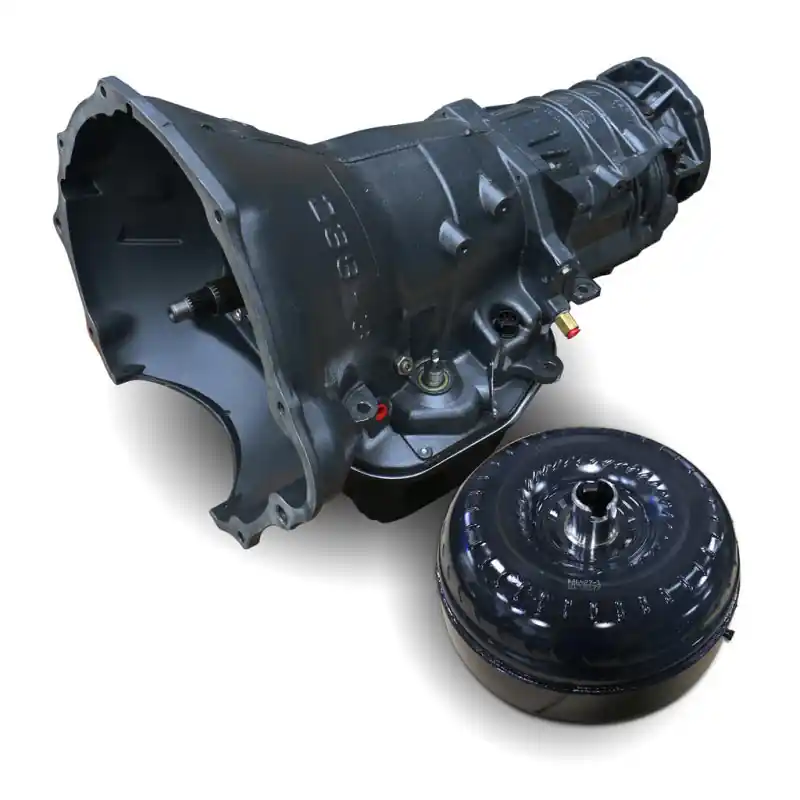

BD Diesel Transmission Kit – 2003-2004 Dodge 48RE 4wd w/ Auxiliary Fil – SBX Performance New Arrival

Description

Manufacturer Part # : 1064194SS

Market Description

• Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover. Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
• When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel’s power and torque demands, the clear choice is BD.

Product Description – Extended

• Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
• BD TowMaster Dodge 48RE Transmission & Converter Package – 2003-2004 4wd

Features and Benefits

• Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
• Stock thrust bushings replaced with roller Torrington bearings
• BD auxiliary full flow filter kit for extra protection
• Drilled intermediate shaft for increased lubrication
• Up to triple the amount of lock-up clutch material
• Modified manual valve for lube in all positions
• Pan heat-dissipating fins keep temperature down
• BD rigid aluminum heavy duty transmission pan
• Cooler line case saver in every transmission
• Enhanced Stall – Street/Towing applications
• Lower rpm response than the stock converter
• Increase the durability of your drivetrain
• Torque multiplying cast aluminum stators
• Not warranted for Race or Sled Pull use
• Every transmission is tested on a dyno
• Increased line pressure to 190-200psi
• Upgraded Governor Pressure Transducer
• Less heat and better fuel economy
• Pan adds 2qt extra oil capacity
• High temp/energy Raybestos band
• Torque Convertor Enhanced Stall
• Stamp-forged steel front cover
• No Shuttle Shifting Problems
• Stamped Forged 1 Piece Cover
• Upgraded Governor Solenoid
• Clutch Count: OD DIRECT 10
• More Efficient Operation
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• No Race Abuse Covered
• Magnetic drain plug
• Furnace-brazed fins
• Furnace Brazed Fins
• Upgraded Valve body
• Clutch Count: OD 6
• TORQUE CONVERTOR:
• Billet band lever
• Billet band strut
• Aluminum HD Pan
• TRANSMISSION:

Product Description – Short

• BD Diesel Transmission Kit – 2003-2004 Dodge 48RE 4wd w/ Auxiliary Filter
• Auto Trans Assembly
• TRANS PKG STAGE 4

Product Description – Long

• BD TowMaster Dodge 48RE Trans & Converter Package 2003-2004 4wd
• Transmission Kit

Product Description – Invoice

TRANS PACKAGE DODGE 2003-2004 48RE 4WD

AAIA Part Type Description

Automatic Transmission Assembly
