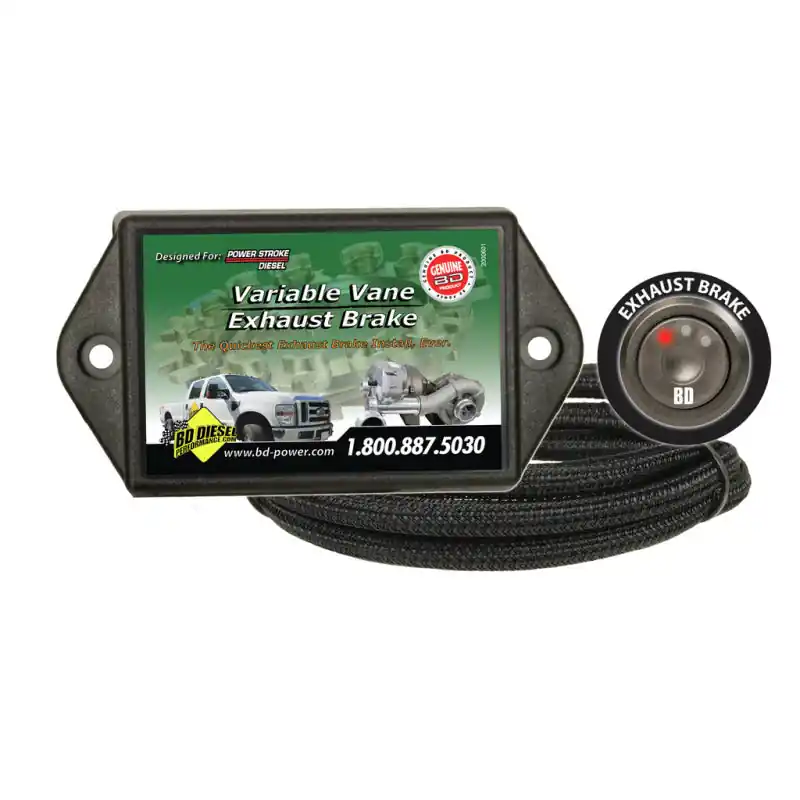

Certified BD Diesel BRAKE Variable Vane Exhaust – Ford 2008-2010 6.4L – SBX Performance

Description

Manufacturer Part # : 2001100

Market Description

• The variable vane turbocharger design used in the 2004.5-up Duramax engines to reduce turbo lag and increase power can also help slow you down. BD utilizes this technology to electronically close off the vanes which can create up to 130 retarding horsepower. This braking force will help to maintain your speeds on descents and curves, giving you better control of your truck and load.While in Tow/Haul mode, switch BDs Variable Vane Brake (VVB) on and every time you let off the throttle, it will close the variable vanes in the turbo, developing exhaust back pressure in the engines combustion chamber which creates resistance against the piston from reaching top dead center.The VVB rotary switch offers three different modes included automatic moderate and aggressive downshifting programs for the Allison transmission to give better weight control. Exhaust braking also works in Allison manual shift selections. The VVB integrates with the cruise control to automatically accelerate and decelerate to maintain vehicle speed.Easily and simply installs by plugging into existing factory ports and by mounting the rotary switch on your dash. All of these features in one package which with some competitors would require two separate ones at nearly twice the price and twice as long to install.Now that is value added engine retarding at its engineered finest.
• The variable vane turbochargers used in diesels today to reduce turbo lag, emissions and increase power can also be used to slow you down. BD utilizes this technology by electronically closing off the turbine vanes which can create up to 130 retarding horsepower. This braking force will help to maintain your speeds on descents and curves, giving you better control of your truck and load. Works with your cruise control to automatically accelerate and decelerate to maintain vehicle speed. Easily and simply installs by plugging into existing factory connectors and by mounting the switch on your dash.

Product Description – Extended

Exhaust Brake; Variable Van; Incl. VVB Module/Harness/Push Button Switch/Switch Bracket/Switch Decal/Tape/Dielectric Grease/Hardware;

Features and Benefits

• Integrated with the cruise control to automatically accelerate and decelerate to maintain vehicle speed
• Different modes including automatic downshifting keeping engine rpm and engine retarding force high
• Electronically closes off turbocharger vanes to provide engine braking
• Electronically Closes Off Turbo Vanes To Provide Engine Braking
• Integrated with CC To Auto Accel./Decelerate To Maintain Speed
• Easily Installs By Plugging Into Existing Factory Ports
• Helps Maintain Speeds On Descents And Curves
• Delivers Up T0 70 PSI Exhaust Backpressure
• Delivers up to 70psi exhaust backpressure
• Can Create Up To 130 Retarding Horsepower
• Different Modes Incl. Auto Downshifting
• Better control of your truck and load.
• Better Control Of Your Truck And Load
• 12 Months r 24000 Mile Warranty
• In-dash ‘Push To Engage’ Button
• In-Dash Push To Engage Button

Product Description – Short

• BD Diesel BRAKE Variable Vane Exhaust – Ford 2008-2010 6.4L
• EXHAUST BRAKE VVB

Product Description – Long

BRAKE, Variable Vane Exhaust – Ford 2008-2010 6.4L

Product Description – Invoice

EXHAUST BRAKE VVB FORD 2008-2010 6.4L

AAIA Part Type Description

Exhaust Brake
