Certified Fabtech 09-13 Ford F150 4WD 4in Basic Sys w/Rr Stealth – SBX Performance

Description

Manufacturer Part # : K2183M

Market Description

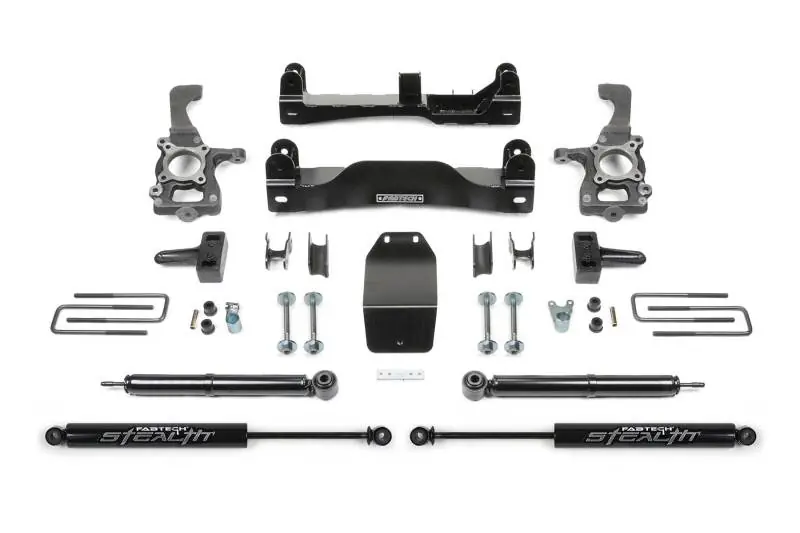

• Fabtech’s new 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 35” tall tires and features high arched lower control arm crossmembers constructed of 1/4in thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtech’s Stealth rear shocks.The 4” System allows use of 33” or 35” tires and is ESC (Electronic Stability Control) and Traction Control compliant.
• Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.

Associated Comments

TIRE SIZE – 35/12.50R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/60R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/70R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 123. WILL NOT FIT RAPTOR MODELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES

Product Description – Short

• Fabtech 09-13 Ford F150 4WD 4in Basic System w/Rear Stealth Shocks
• 4″ BASIC SYS W/ RR S
• 4in. BASIC SYS W/RR

Product Description – Extended

4in. BASIC SYS W/RR STEALTH 09-13 FORD F150 4WD

Product Description – Long

• 4″ BASIC SYS W/ RR STEALTH 09-13 FORD F150 4WD
• 4in. BASIC SYS W/STEALTH 09-13 FORD F150 4WD

AAIA Part Type Description

Suspension Lift Kit
