Deal Fabtech 08-16 Ford F250/350/450 4WD 8 Lug 4in Budget Sys w/Perf Shks – SBX Performance

Description

Manufacturer Part # : K2160

Market Description

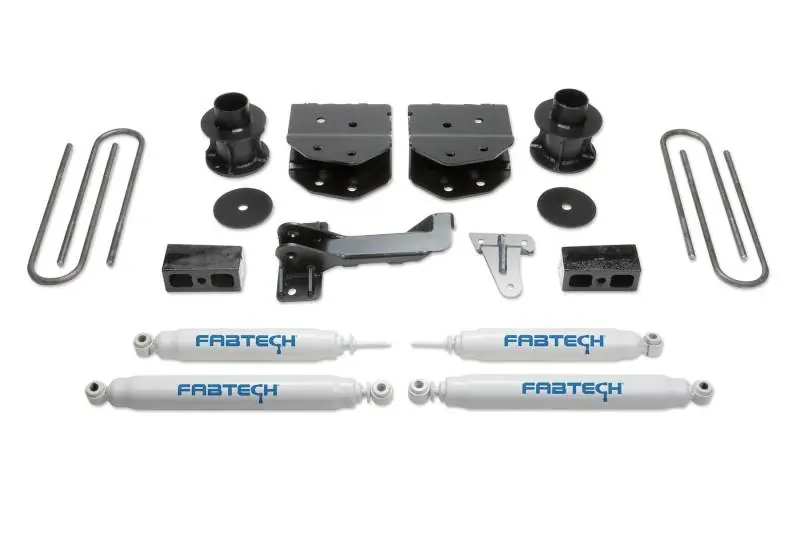

• To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4” Budget System.The 4” Budget System utilizes the factory front coil springs with a steel upper spacer providing 4” of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.System allows installation of 35” tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.
• To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4 Budget System.The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

Associated Comments

TIRE SIZE – 35/12.50R18 WHEEL – 18X9.5 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

Product Description – Short

• Fabtech 08-16 Ford F250/350/450 4WD 8 Lug 4in Budget System w/Perf. Shocks
• 4″ BUDGET SYS W/PERF
• LftKt-Suspw/Shock

Product Description – Long

• 4in. BUDGET SYS W/PERF SHKS 2011 FORD F250/350/450 4WD 8 LUG ONLY
• 4″ BUDGET SYS W/PERF SHKS 2008-16 FORD F250/350/450 4WD 8 LUG

Product Description – Extended

4in. BUDGET SYS W/PERF SHKS 2008-16 FORD F250/350/450 4WD 8 LUG

AAIA Part Type Description

Suspension Lift Kit
