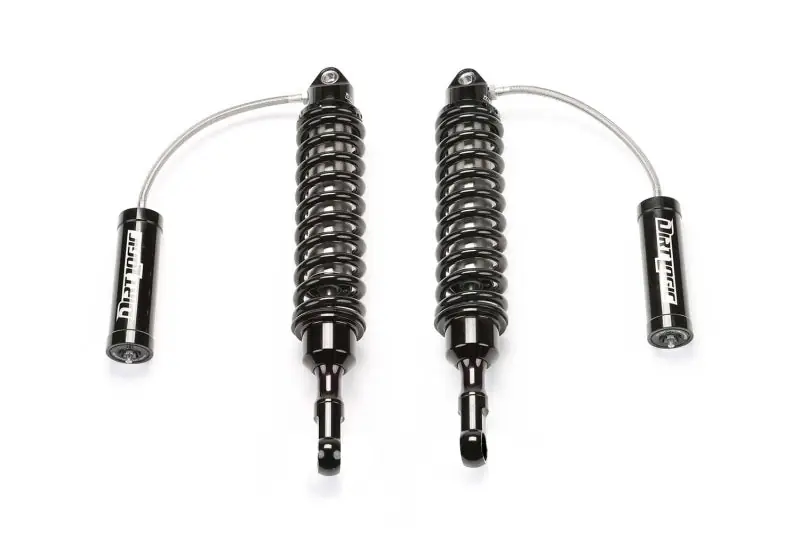

Direct From Manufacturer Fabtech 09-13 Ford F150 4WD 2in Front Dirt Logic 2.5 Reservoir Coilovers – Pair

Description

Manufacturer Part # : FTS22191

Market Description

• Dirt Logic 2.5 Resi Coilovers. From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving. Features: 2.5in OD Stainless Steel Body. 2.25in OD Billet Aluminum Piston. 7/8in NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 5/8in Spherical Ball Mounting Ends. 2.50in OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose. Extended Length – E23.21. Collasped Length – C17.96. Stroke Length – S5.25 . Top Mount – TP. Bottom Mount – B1.
• Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.

Product Description – Short

• Fabtech 09-13 Ford F150 4WD 2in Front Dirt Logic 2.5 Reservoir Coilovers – Pair
• 2.5DLSS C/O RESI 09F
• CoilOvr

Product Description – Extended

• Dirt Logic 2.5 Resi Coil Over Shock Absorber; For 2 in. Lift; For PN[K2197DL];
• 2.5DLSS C/O RESI 09F150 4WD 2″ PAIR PACKAGED.

Product Description – Long

• 2.5DLSS C/O RESI 09F150 4WD 2″ PAIR PACKAGED
• Dirt Logic 2.5 Resi Coil Over Shock Absorber

Features and Benefits

• Regulates Wheel Motion In Relation To Body
• Custom Engineered For High Quality Ride
• Upper Control Arm Kit

AAIA Part Type Description

Shock Absorber and Coil Spring Assembly

Product Description – Invoice

Fabtech-2.5DLSS C/O RESI 09F
