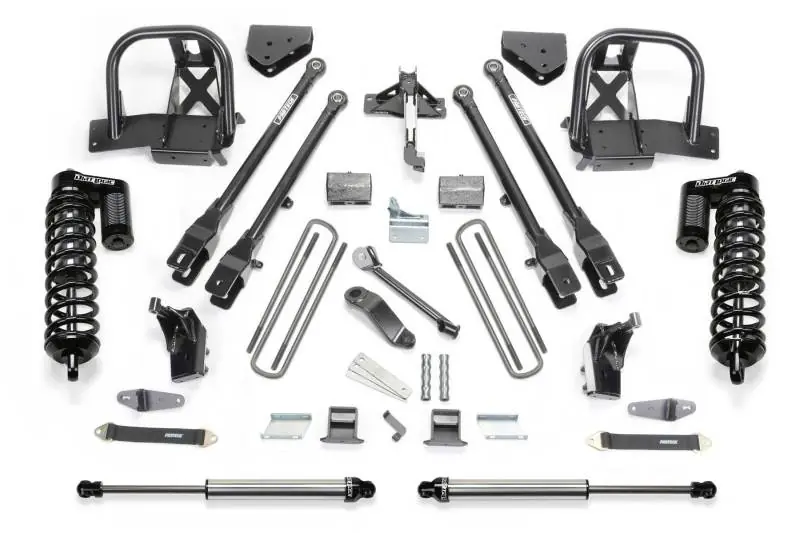

Exclusive Fabtech 11-13 Ford F450/550 4WD 10 Lug 6in 4Link Sys w/Dlss 4.0 C/O& R – SBX Performance

Description

Manufacturer Part # : K2159DL

Market Description

• Obtain maximum front suspension damping for Super Duty’s with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4” thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps.Includes rear 2.25 Dirt Logic Stainless Steel shocks.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Associated Comments

F450: TIRE SIZE – 285/75R18 WHEEL – 18XOEM W/OEM” BS W/OEM DUALLY WHEELS; F550: TIRE SIZE – 285/75R19.5 WHEEL – 19.5XOEM W/OEM” BS W/OEM DUALLY WHEELS; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.

Product Description – Short

• Fabtech 11-13 Ford F450/550 4WD 10 Lug 6in 4 Link System w/DL 4.0 Coilovers & Rear DL Shocks
• 6″ 4LINK SYS W/DLSS
• LftKt-Suspw/Shock

Product Description – Extended

6in. 4LINK SYS W/DLSS 4.0 C/O/ RR DLSS 2011-13 FORD F450/550 4WD 10 LUG

Product Description – Long

• 6in. 4LINK SYS W/DLSS 4.0 C/O/RR DLSS 2011-13 FORD F450/550 4WD 10 LUG
• 6″ 4LINK SYS W/DLSS 4.0 C/O& RR DLSS 2011-13 FORD F450/550 4WD 10 LUG

AAIA Part Type Description

Suspension Lift Kit
