Fabtech 07-13 GM K1500 P/U w/o Autoride 4WD 6in Perf Sys w/Dlss 2.5C/O – SBX Performance Trending

Description

Manufacturer Part # : K1025DL

Market Description

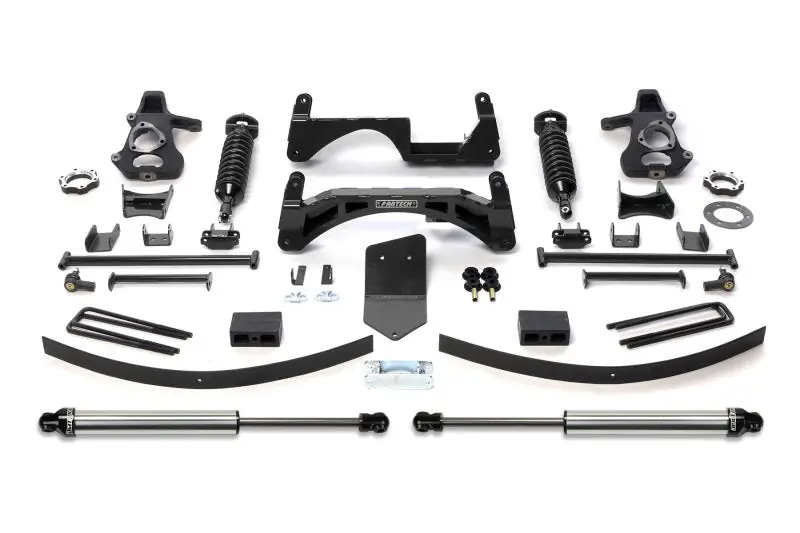

• Our 6in Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35in tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4in thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system.Includes front 2.5 Dirt Logic Stainless Steel coil over shocks and rear 2.25 Dirt Logic Stainless Steel shocks. This system has been properly designed to work with the factory Stabilitrak safety functions without reprogramming the vehicle’s computer.
• Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Associated Comments

TIRE SIZE – 35/12.50R17 WHEEL – 17X8 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 325/65R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 17. DOES NOT FIT STANDARD CAB.

Product Description – Short

• Fabtech 07-13 GM K1500 4WD w/o Autoride 6in Perf. System w/DL 2.5 Coilovers & Rear DL Shocks
• 6″ PERF SYS W/DLSS 2
• LftKt-Suspw/Shock

Product Description – Long

• 6″ PERF SYS W/DLSS 2.5C/Os & RR DLSS 07-13 GM K1500 P/U W/O AUTORIDE 4WD
• 6in. PERF SYS W/DLSS 2.5C/Os/RR DLSS 07-13 GM K1500 P/U W/O AUTORIDE 4WD

AAIA Part Type Description

Suspension Lift Kit
