Fabtech 11-16 Ford F250/350/450/550 4WD 6in C/O Conv Sys Dlss 4.0 C/O& Hoops Only High Quality

Description

Manufacturer Part # : K2135DL

Market Description

• Fabtech steps out of the box with the release of our Coilover Shock conversion system for the ultimate Super Duty suspension upgrade. This Coilover conversion directly replaces the stock Coil Spring buckets with super stout gusseted 1 3/4 in. tubing for exceptional strength. This Coilover conversion system allows use of the Dirt Logic 4.0 Coilover Shocks. To complete this high end Coilover conversion opt for our hydraulic bump stops. This Coilover Shock System is compatible with our Radius Arm and 4 Link systems.
• Obtain maximum front suspension damping for Super Duty’s with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4” thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks.

Product Description – Extended

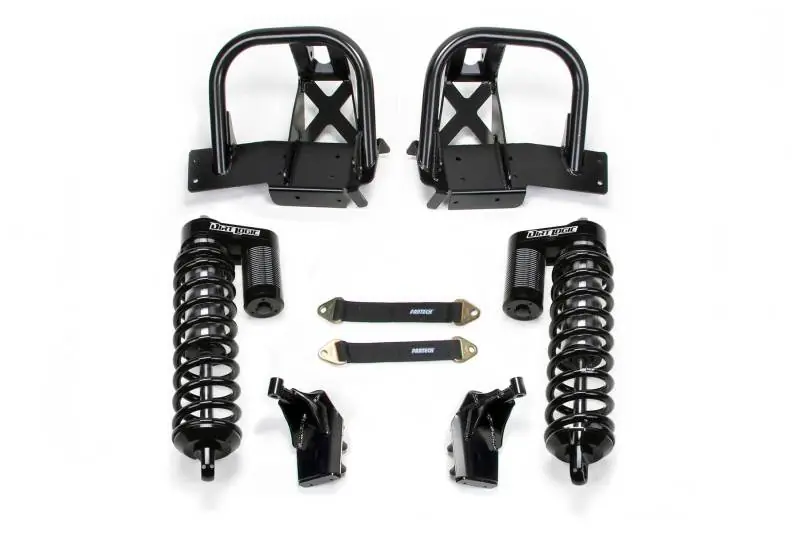

4.0 Coilover Conversion System; w/DLSS Shocks; 6 in. Lift; Incl. Coilover Hoops; Lower Mounts; All Required Hardware;

Product Description – Short

• Fabtech 11-16 Ford F250/350/450/550 4WD 6in DL 4.0 Coilover Conversion System
• 6″ C/O CONV SYS DLSS
• LftKt-Suspw/Shock

Product Description – Long

• 6″ C/O CONV SYS DLSS 4.0 C/O& HOOPS ONLY 2011-16 FORD F250/350/450/550 4WD
• 4.0 Coilover Conversion System

Associated Comments

41. WILL NOT WORK WITH LEVELING OR BASIC SYSTEM.

AAIA Part Type Description

Suspension Lift Kit
