Fabtech 11-16 Ford F350 4WD 6in 4Link Sys w/4.0 R/R & 2.25 – SBX Performance Affordable

Description

Manufacturer Part # : K2288DL

Market Description

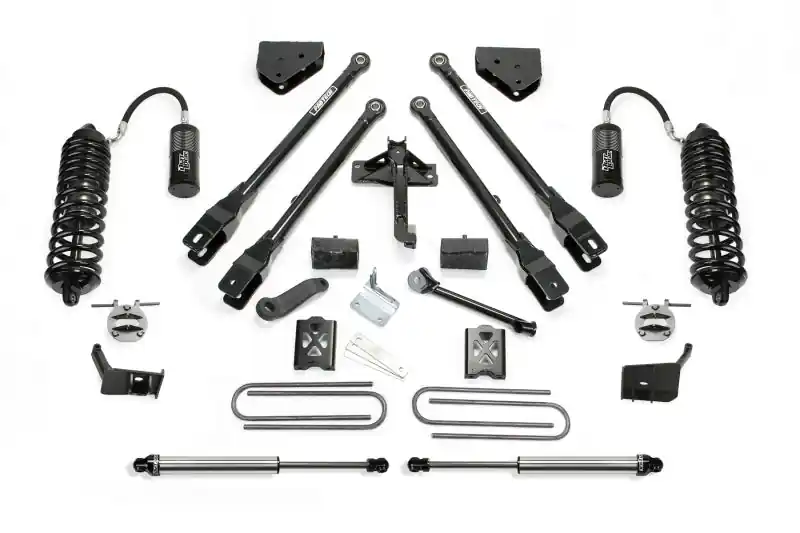

• Fabtech continues its legendary Coilover Conversion systems with an all new design for the 2011-16 Super Duty. This new system utilizes the factory coil spring bucket for a fast, easy installation with an affordable price. The heavy duty bracketry allows the installation of the massive Dirt Logic 4.0 Remote Resi Coilover shocks.Dirt Logic Coilovers are constructed with a Stainless Steel body and NitroSteel? piston rod for maximum corrosion resistance. The Dirt Logic 4.0 for 6? lift systems feature dual rate coil springs for a superior quality both on and offroad.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Associated Comments

TIRE SIZE – 315/70R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 325/65R18 WHEEL – 18X9.5 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X10 W/5″ BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

Product Description – Short

• Fabtech 11-16 Ford F350 4WD 6in 4 Link System w/DL 4.0 Resi Coilovers & Rear DL Shocks
• 6″ 4LINK SYS W/ 4.0
• LftKt-Suspw/Shock

Product Description – Long

• 6″ 4LINK SYS W/ 4.0 R/R & 2.25 2011-16 FORD F350 4WD
• 4 Link Lift System

Product Description – Extended

6in. 4LINK SYS W/4.0 R/R/2.25 2011-16 FORD F350 4WD

AAIA Part Type Description

Suspension Lift Kit
