Fabtech 15-20 Ford F150 4WD 6in Basic Sys w/Perf Shks – SBX Performance Free Shipping

Description

Manufacturer Part # : K2194

Market Description

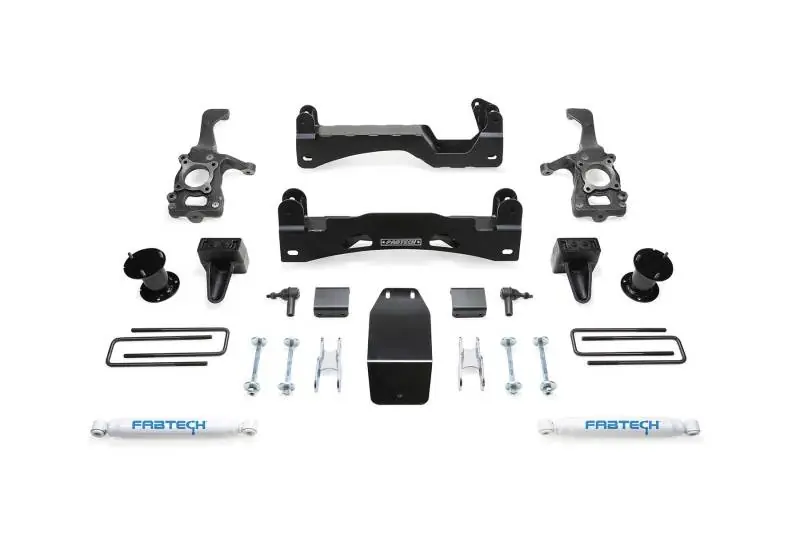

• In cooperation with Ford Motor Company, Fabtech has developed this 6” Suspension Systems for the all new 2015 F150.This new system includes heavy duty 1/4” thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad.Fabtech’s extended length ductile iron steering knuckles allow use of 18”, 20” or 22” wheels.The Basic System includes front spacers utilizing the factory Coilover shocks to retain the stock ride while the rear receives Fabtech Performance twin tube shocks.Estimated installation time – 5 hrs.Zero holes to drill for installation.No welding required.Some cutting required.No driveshaft modification required.
• As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more.

Associated Comments

TIRE SIZE – 35/13.50R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 35/13.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 285/55R22 WHEEL – 22X9.5 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 325/65R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 123. WILL NOT FIT RAPTOR MODELS.

Product Description – Short

• Fabtech 15-18 Ford F150 4WD 6in Basic System w/Perf. Shocks
• 6″ BASIC SYS W/PERF
• LftKt-Suspw/Shock

Product Description – Extended

6in. BASIC SYS W/PERF SHKS 2015-18 FORD F150 4WD

Product Description – Long

• 6″ BASIC SYS W/PERF SHKS 2015-18 FORD F150 4WD
• 6in. BASIC SYS W/PERF SHKS 2015 FORD F150 4WD

AAIA Part Type Description

Suspension Lift Kit
