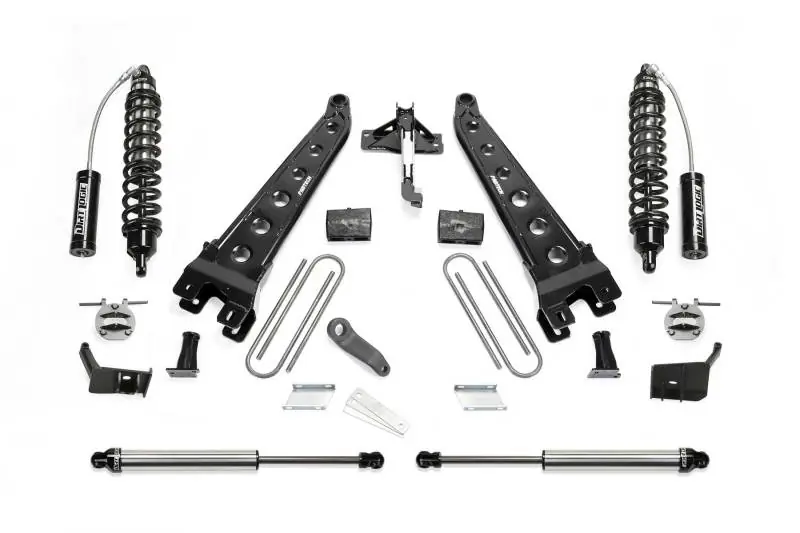

Fabtech 17-21 Ford F250/F350 4WD Diesel 6in Rad Arm Sys w/2.5 & 2.25 – SBX Performance Certified

Description

Manufacturer Part # : K2243DL

Market Description

• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
• Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

Associated Comments

TIRE SIZE – 37/12.50R17 WHEEL – 17X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/12.50R18 WHEEL – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.

Product Description – Short

• Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/DL 2.5 Coilover & Rear DL 2.25 Shocks
• 6″ RAD ARM SYS W/ 2.
• 6in. RAD ARM SYS W/2

Product Description – Long

• 6″ RAD ARM SYS W/ 2.5 & 2.25 17-19 FORD F250/F350 4WD DIESEL
• Radius Arm Lift System

Product Description – Extended

6in. RAD ARM SYS W/2.5/2.25 17-18 FORD F250/F350 4WD DIESEL

AAIA Part Type Description

Suspension Lift Kit
