Fabtech 17-21 Ford F250/F350 4WD Gas 6in Rad Arm Sys w/Coils & Perf Sh – SBX Performance Free Returns

Description

Manufacturer Part # : K2256

Associated Comments

TIRE SIZE – 37/12.50R17 WHEEL – 17X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/12.50R18 WHEEL – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 173. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.

Market Description

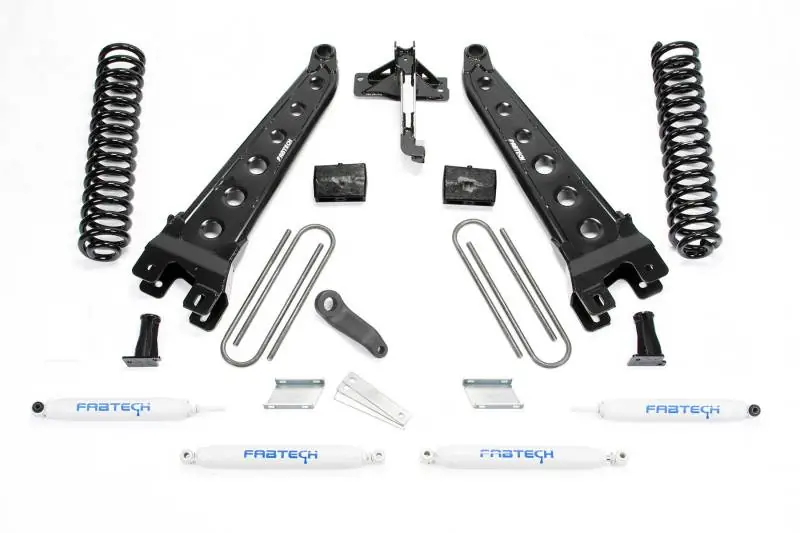

• Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6″ replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.Includes Performance Shocks.This system qualifies for our 5/60 Powertrain Warranty.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Product Description – Short

• Fabtech 17-19 Ford F250/350 4WD Gas 6in Radius Arm System w/Perf. Shocks
• 6″ RAD ARM SYS W/COI
• 6in. RAD ARM SYS W/C

Product Description – Long

• 6″ RAD ARM SYS W/COILS & PERF SHKS 17-19 FORD F250/F350 4WD GAS
• Radius Arm Lift System

Product Description – Extended

6in. RAD ARM SYS W/COILS/PERF SHKS 17-18 FORD F250/F350 4WD GAS

AAIA Part Type Description

Suspension Lift Kit
