Fresh Stock Fabtech 14-18 Ram 2500 4WD 5in Radius Arm Kit w/4.0 C/O Resi Dlss & Rr – SBX Performance

Description

Manufacturer Part # : K3072DL

Market Description

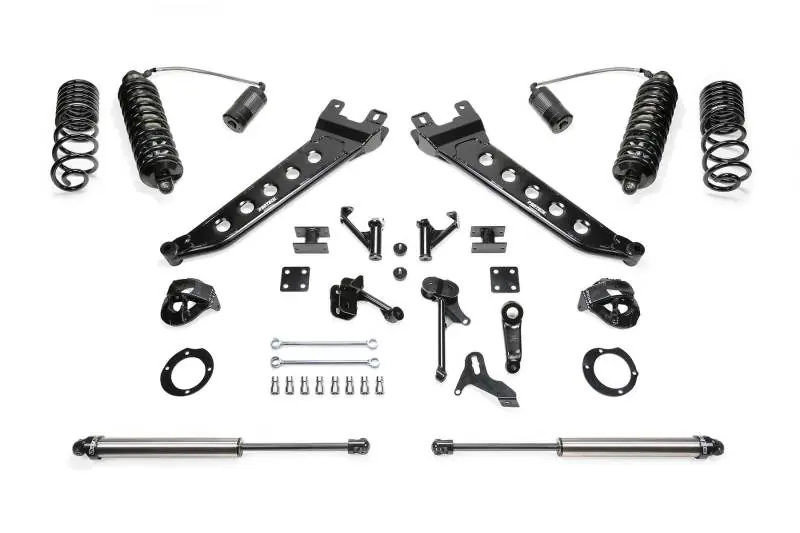

• The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory TracK Bar bracket. The Dirt Logic 4.0 Coilover features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0?s provide a super smooth highway ride with outstanding offroad damping for rough terrain.
• Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

Associated Comments

TIRE SIZE – 37/12.50R17 WHEEL – 17X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 37/12.50R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R20 WHEEL – 20X9.5 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R22 WHEEL – 22X9.5 W/5″ BS W/MINOR TRIMMING

Product Description – Short

• Fabtech 14-18 Ram 2500 4WD 5in Radius Arm System w/DL 4.0 Resi Coilovers & Rear DL Shocks
• 5″ RADIUS ARM KIT W/
• LftKt-Suspw/Shock

Product Description – Extended

Radius Arm Lift System; 5 in. Lift; w/Dirt Logic 4.0 Resi Coilovers; Dirt Logic Shocks;

Product Description – Long

• 5″ RADIUS ARM KIT W/4.0 C/O RESI DLSS & RR 2.25 DLSS 2014-18 RAM 2500 4WD
• Radius Arm Lift System

AAIA Part Type Description

Suspension Lift Kit
