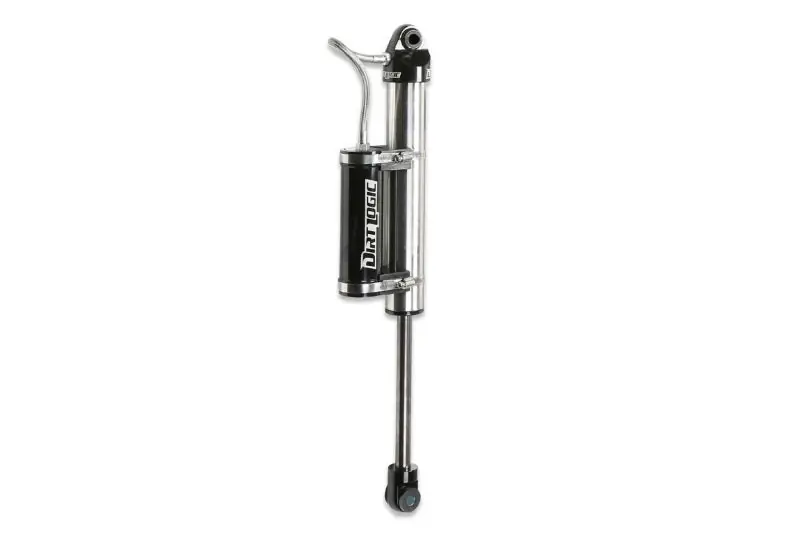

Genuine Fabtech Front Dirt Logic 2.25 Reservoir Shock Absorber – Custom – SBX Performance

Description

Manufacturer Part # : FTS800762

Market Description

• Dirt Logic 2.25 Resi Shock. Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping. Features: 2.25in OD Stainless Steel Body. 2.0in OD Billet Aluminum Piston. 7/8in NitroSteel BlackPiston Rod. Polyurethane Mounting Ends. 2.25in OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose. Extended Length – E31.06. Collasped Length – C19.52. Stroke Length – S11.54. Top Mount – EB1. Bottom Mount – EB1.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Product Description – Short

Fabtech Front Dirt Logic 2.25 Reservoir Shock Absorber – Custom

Product Description – Extended

• Dirt Logic 2.25 Resi Front Shock;
• 2.25DLSS RESI.

Product Description – Long

• Dirt Logic 2.25 Resi Front Shock
• 2.25DLSS RESI

Features and Benefits

Dirt Logic 2.5 Resi Shock

Product Description – Invoice

Fabtech-2.25DLSS RESI

AAIA Part Type Description

Shock Absorber
