Holiday Sale Fabtech 07-14 GM C/K1500 SUV 2WD/4WD 4in Budget UCA System w/Rear Perf – SBX Performance

Description

Manufacturer Part # : K1060

Market Description

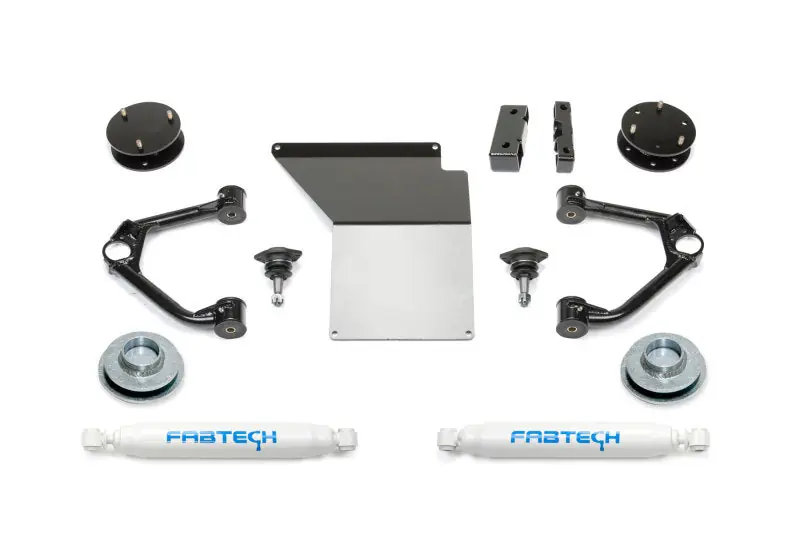

• The 4 Budget System for 2007-13 GM C/K1500 SUVs provides a mild lift height with a supple ride for use with 33 tall tires for the value minded enthusiast.Fabtechs replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4 thick steel skid plate protects the front diff. The rear lift comes from a 2 Coil Spacer system.The 4 Budget is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.
• The 4″ Budget System for GM C/K1500 SUV’s provides a mild lift height with a supple ride for use with 33″ tall tires for the value minded enthusiast.Fabtech’s replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4″ thick steel skid plate protects the front diff. The rear lift comes from a 2″ Coil Spacer system.The 4″ Budget is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

Associated Comments

TIRE SIZE – 275/65R18 WHEEL – 18X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 285/55R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/70R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 132. WILL NOT FIT 2WD SUBURBAN.

Product Description – Short

• Fabtech 07-14 GM C/K1500 SUV 2WD/4WD 4in Budget UCA System w/Rear Perf. Shocks
• 4″ BUDGET SYS W/ PER
• 4in. BUDGET SYS W/PE

Product Description – Extended

4in. BUDGET SYS W/PERF SHOCKS 07-14 GM C/K1500 SUV

Product Description – Long

• 4″ BUDGET SYS W/ PERF SHOCKS 07-14 GM C/K1500 SUV
• 4in. BUDGET SYS W/PERF SHOCKS 2007-13 GM SUV

AAIA Part Type Description

Suspension Lift Kit
