Last Chance Fabtech 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U w/oE Forg Stl UCA 2in – SBX Performance

Description

Manufacturer Part # : K1105DL

Market Description

• Arms eliminate upper ball joint w/ super strong 1” ID Stainless American Uniball – Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments – Allows for increased wheel travel when used with Dirt Logic 2.5 Resi Coilover shocks – Chromoly tubing reduces flex found in stock arms for more positive road feel – 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature – Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.Material Construction Specs – Built with same materials as found on Trophy Trucks – .120” Wall 4130 Chromoly Tubing. 1.50” OD. – .250” wall DOM Bushing Barrels – 1” ID Stainless Steel American Uniball – 17-4 Stainless Misalignments – Heat Treated 17-4 Stainless Steel Tapered Uniball PinsNOTE- Before ordering visually check your vehicle’s factory suspension for aluminum or steel version. This system will only fit factory steel suspension vehicles.
• Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.

Associated Comments

TIRE SIZE – 275/65R18 WHEEL – 18X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 285/55R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/70R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

Product Description – Short

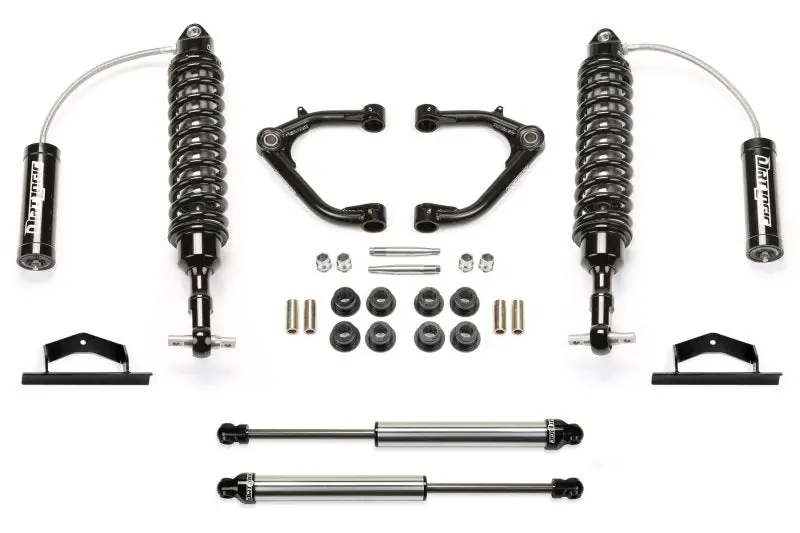

• Fabtech 07-13 GM C/K1500 w/OE Forged UCA 2in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks
• 2″ UCA KIT W/ DL 2.5
• LftKt-Suspw/Shock

Product Description – Extended

• 2″ UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG STL UCA
• 2in. UCA KIT W/DL 2.5/2.25 07-13 GM C/K1500 P/U/14-18 C/K1500 P/U W/OE FORG STL UCA

Product Description – Long

• 2″ UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG
• 2IN. UCA KIT W/DLSS 2.5 C/O RESI/RR DLSS 07-13 GM C/K1500/2014-15 C/K1500 STEEL

AAIA Part Type Description

Suspension Lift Kit
