Limited Edition Fabtech 08-10 Ford F350 4WD 6in 4Link Sys w/Dlss 4.0 C/O & Rr Dlss – SBX Performance

Description

Manufacturer Part # : K20321DL

Market Description

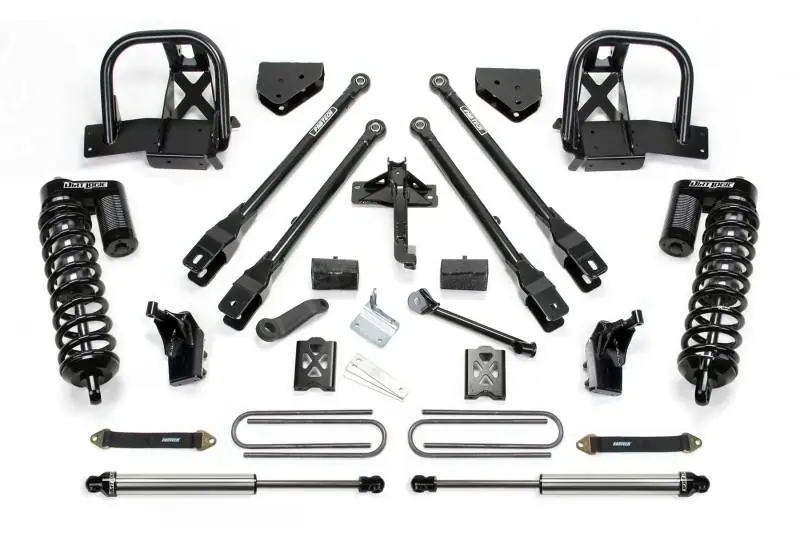

• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2” diameter heavy wall links feature race style 1” Uniballs for superior strength. Thick 1/4” steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our Dirt Logic 4.0 Stainless Steel adjustable Coilover Shock conversion. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
• For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

Associated Comments

TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 315/70R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 325/65R18 WHEEL – 18X9.5 W/4 3/4″ BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

Product Description – Short

• Fabtech 08-10 Ford F350 4WD 6in 4 Link System w/DL 4.0 Coilovers & Rear DL Shocks
• 6″ 4LINK SYS W/DLSS
• LftKt-Suspw/Shock

Product Description – Long

• 6″ 4LINK SYS W/DLSS 4.0 C/O & RR DLSS 08-10 FORD F350 4WD
• 4 Link Lift System

Product Description – Extended

4 Link Lift System; w/DLSS Shocks; 6 in. Lift;

AAIA Part Type Description

Suspension Lift Kit
