Original BD Diesel Super B 600 SX-E S364.5 Turbo Kit – 1994-2002 Dodge 5.9L Cum – SBX Performance

Description

Manufacturer Part # : 1045250

Market Description

All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

Product Description – Extended

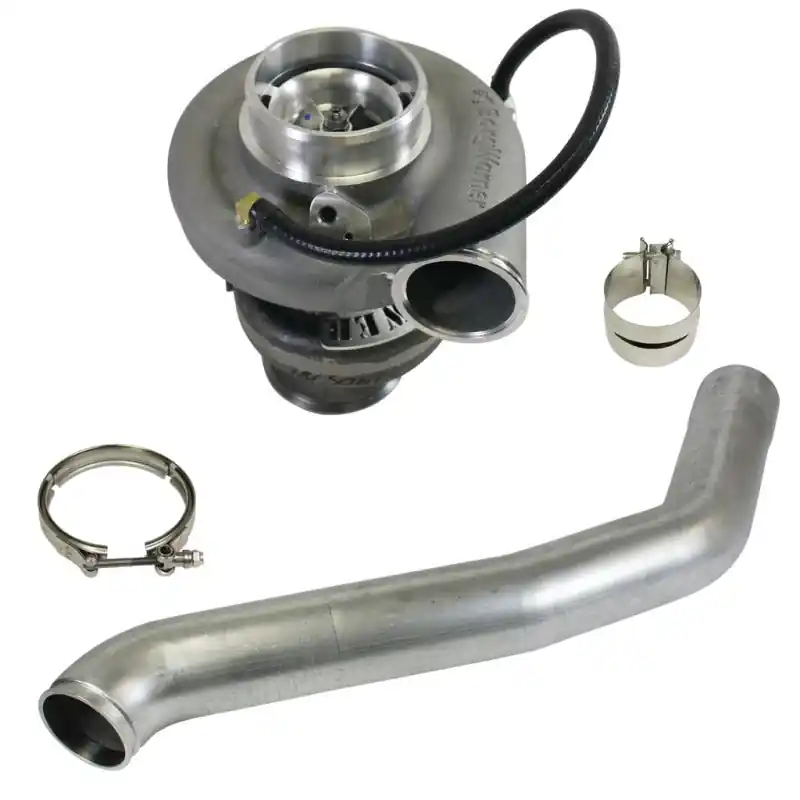

Super B 600 Turbo Kit; SX-E S364.5; A/R Ration 0.80; Incl. Killer B Single Turbo/4 in. Downpipe/V Band Clamp/4 in. Stainless Steel Band Clamp/Oil Drain Gasket;

Features and Benefits

• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• Larger Compressor Blade Surface But w/Smaller Inducer Results In Quicker Spooling/More Flow Than Similar Sized Wheels
• The Sx-E Turbo Was Designed For Performance With A 360 Thrust Bearing And Enhanced Compressor Wheel And Housing
• BD Exclusive Feature Of A Heavy Sprung Waste-Gated T3 Turbine Housing That Mounts Onto Stock Exhaust Manifolds
• The High Strength Fmw Forged Milled Wheels Are Lighter And Stronger And Withstand Higher Wheel Speeds
• Turnbuckle Boost Control Allows For Ease Of Adjustment For Altitude And Extreme Tuning
• BD’s HD Waste gate and bracket holds boost and prevents over speed damage
• BD HD Waste Gate And Bracket Holds Boost And Prevents Over Speed Damage
• Approximate rated 600hp (depending on truck configuration)
• Approximate Rated 600Hp – Depending On Truck Configuration
• Kit comes with downpipe, V-band clamp, band clamp
• Kit Comes With Downpipe/V-Band Clamp/Band Clamp
• Turbine Wheel: 80mm 3.15in
• Comp Wheel: 64.5mm 2.54in
• Flow: 82 Lb./min
• A/R Ratio: 0.80

Product Description – Short

• BD Diesel Super B 600 SX-E S364.5 Turbo Kit – 1994-2002 Dodge 5.9L Cummins
• Turbocharger Kit
• TURBO 600 SX-E

Product Description – Long

• Super B 600 SX-E S364.5 Turbo Kit – Dodge 1994-2002 5.9L
• Super B 600 Turbo Kit

Product Description – Invoice

TURBO 600 SX-E DODGE 1994-2002 5.9L

AAIA Part Type Description

Turbocharger
