Reduced Price Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Perf. Shocks – SBX Performance

Description

Manufacturer Part # : K1055

Market Description

• The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

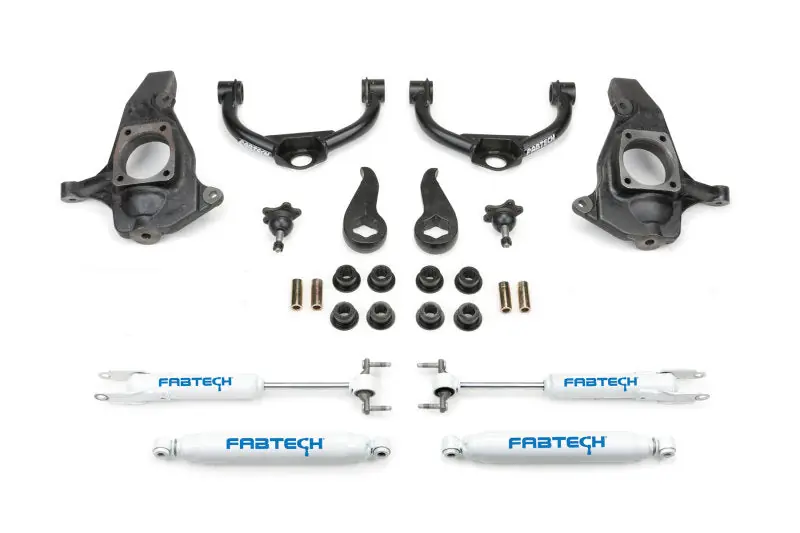

• Our 4in Ultimate System provides less lift than our 6in RTS system but still allows use of 33in or 35in tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50in OD .120in thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.

Associated Comments

TIRE SIZE – 33/12.50R18 WHEEL – 18X9 W/5 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 33/12.50R20 WHEEL – 20X9 W/5 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 35/13.50R18 WHEEL – 18X9 W/5 3/4″ BS W/FENDERWELL CUTTING; TIRE SIZE – 35/13.50R20 WHEEL – 20X9 W/5 3/4″ BS W/FENDERWELL CUTTING; 17. DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES

Product Description – Short

• Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Perf. Shocks
• 3.5″ ULTIMATE SYS W/
• 3.5in. ULTIMATE SYS

Product Description – Long

• 3.5″ ULTIMATE SYS W/PERF SHKS 2011-19 GM C/K2500HD/3500HD
• 4in. ULTIMATE SYS W/PERF SHKS 2011-12 GM 2500HD/3500HD

Product Description – Extended

4in. ULTIMATE SYS W/PERF SHKS 2011-18 GM C/K2500HD/3500HD

AAIA Part Type Description

Suspension Lift Kit
