RTS RTS Billet Converter Kit 9.5in For Ford C4 164 Tooth Flexplate 11.5” Bolt Circle Crafted

Description

RTS Billet Converter Kit

RTS 9.5″ Billet converter kit allows builders to assemble a high performance converter with minimal effort.

• Fully machined cover with bushing installed
• Unit-specific design for hassle-free installation
• Oil flow grooves and holes increase fluid flow to keep converters running cooler
• Turbine hub features a larger flanged diameter to increase the strength rigidity of the turbine
• Clear, detailed instructions

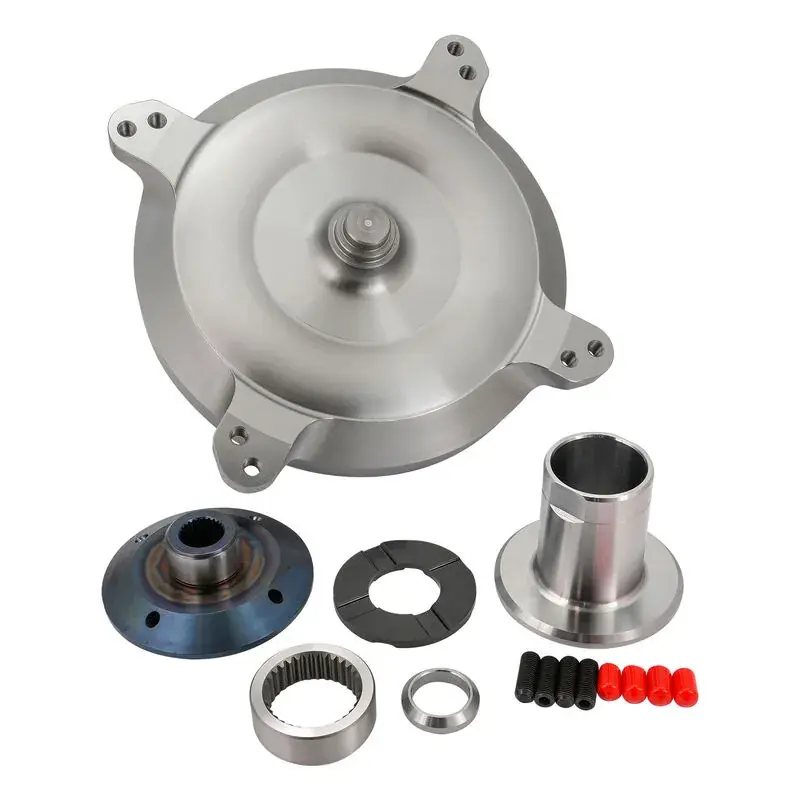

Contents

• Inner Stator Race
• Thrust Washer
• Flanged Impeller Hub
• Stud Covers (4)
• Pilot
• Billet Front Cover
• Front Cover Bushing (Installed)
• Set Screws (4)
• Turbine Hub 26-Tooth

Specs

• Unit Size: 9.5 “
• Core: GM 245mm
• Dampered: No
• Lockup: No
• Transmission Unit: C4
• Stack Height: 5.938″
• Bolt Circle Dia.: 11.50″
• Turbine Hub Input Spline Count: 26
